Freewing F-15C Eagle Super Scale High Performance 90mm EDF Jet (9B) – PNP

589,00 inkl. MwSt.

Vorrätig

Vergleichen
Artikelnummer: FJ30913P Kategorie: Schlagwörter: , , , , ,

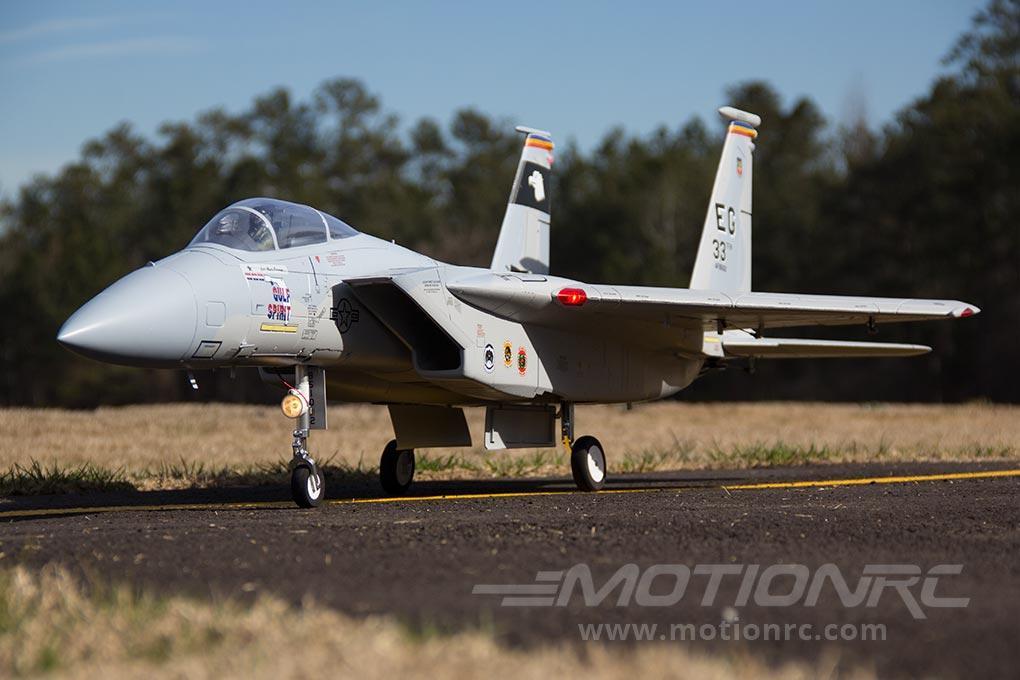

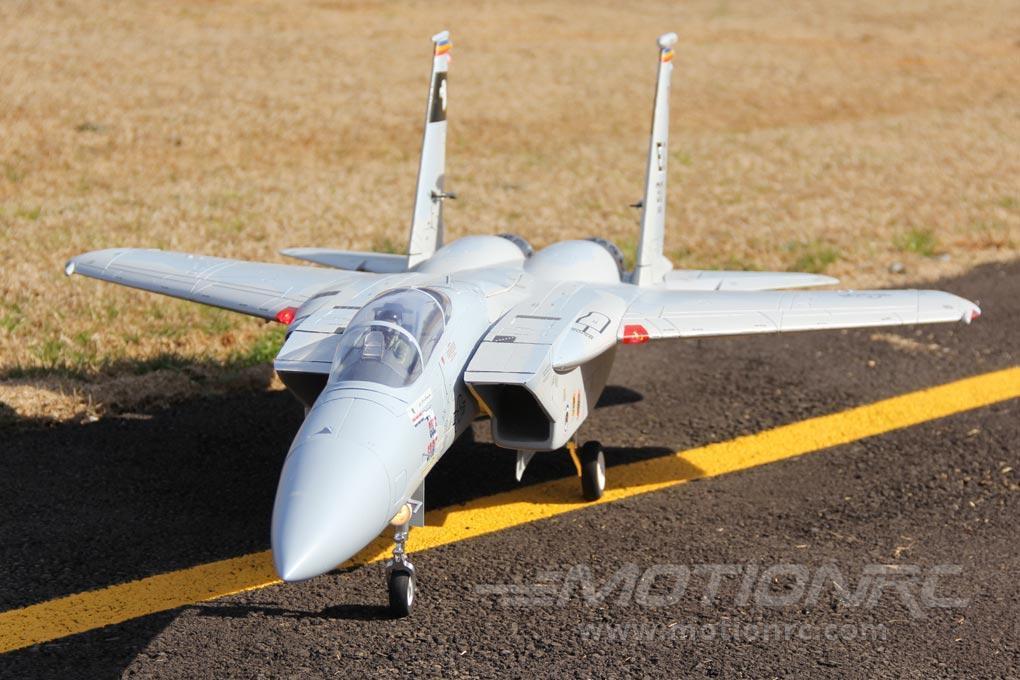

Freewing F-15C Eagle Super Scale High Performance 9-Blade 90mm EDF Jet in “Gulf Spirit” Scheme – PNP – FJ30913P

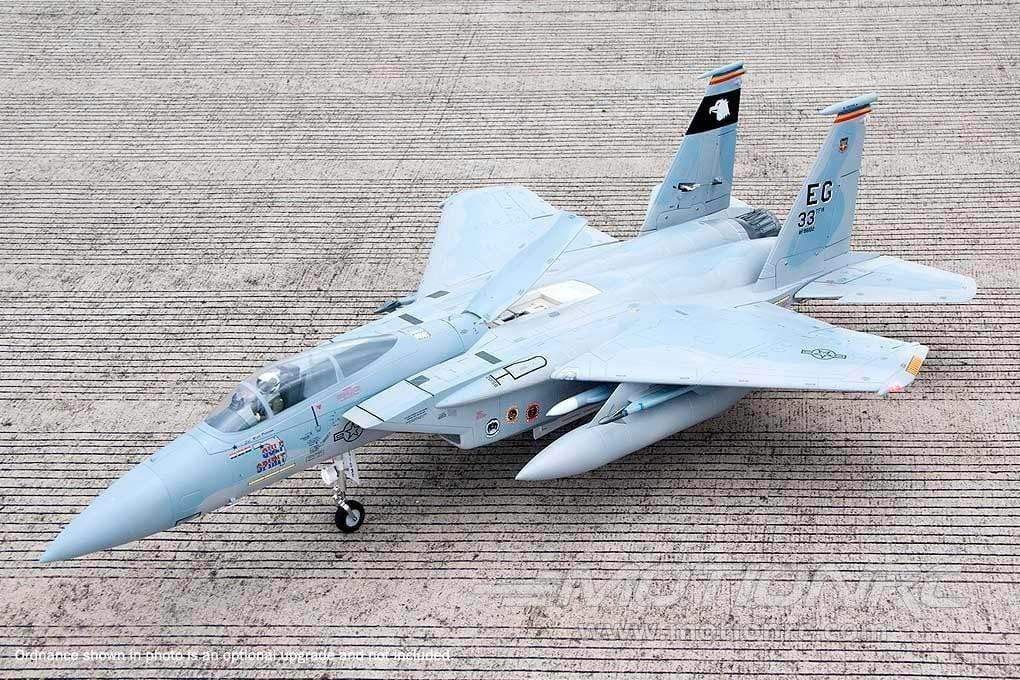

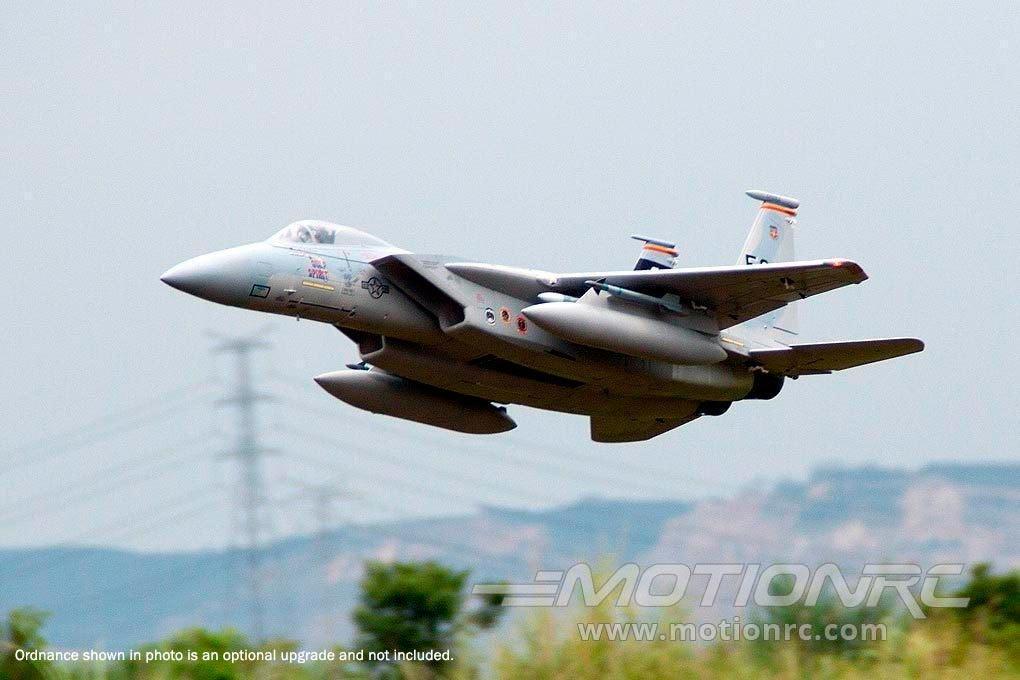

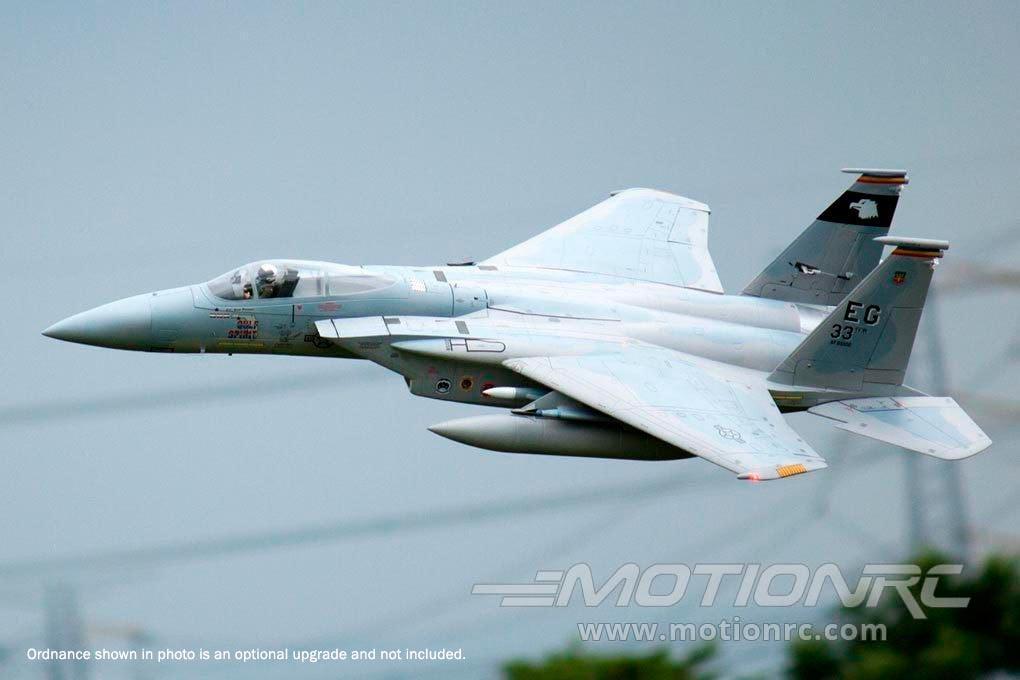

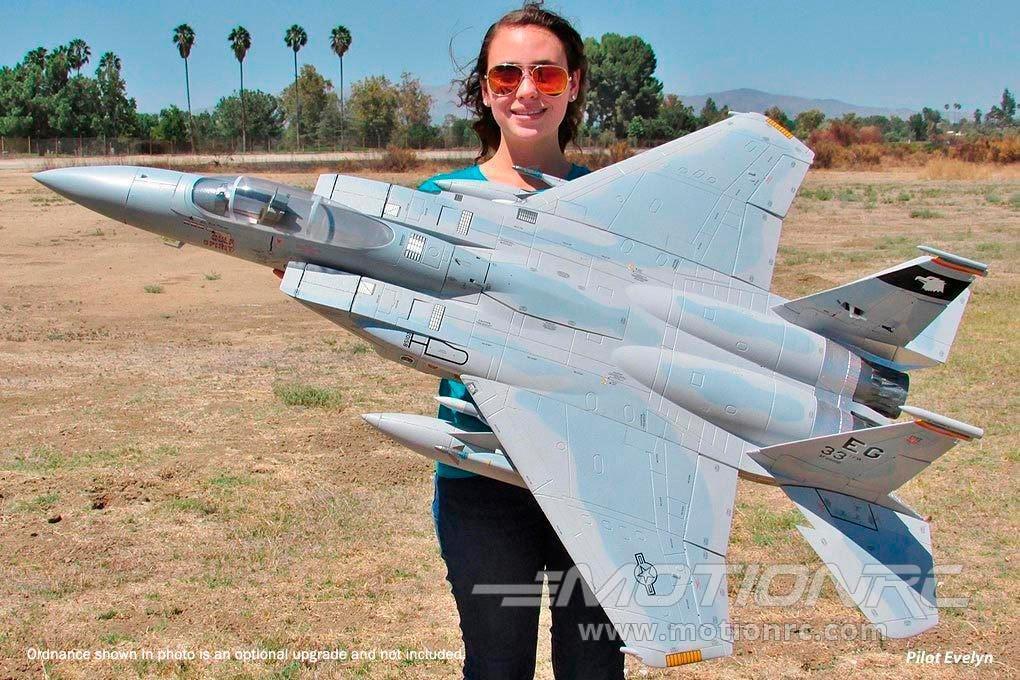

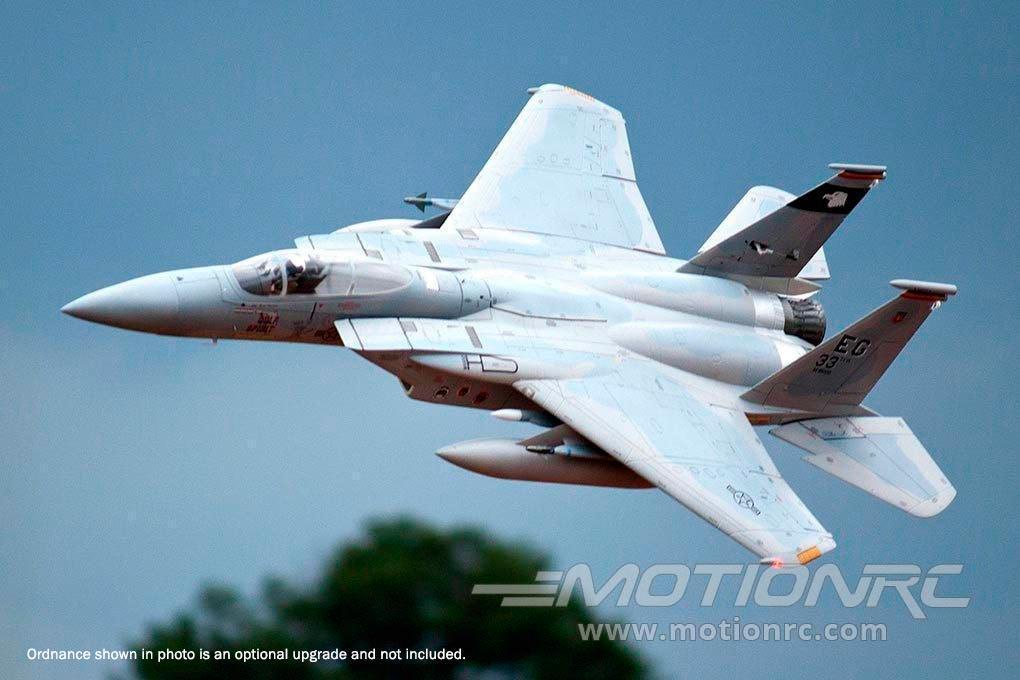

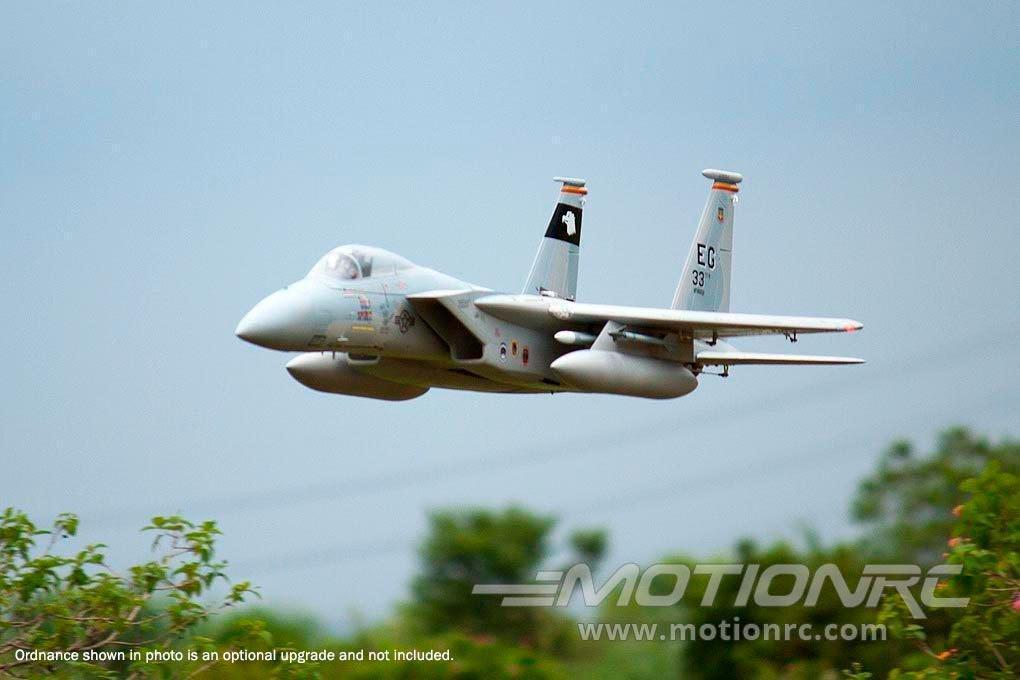

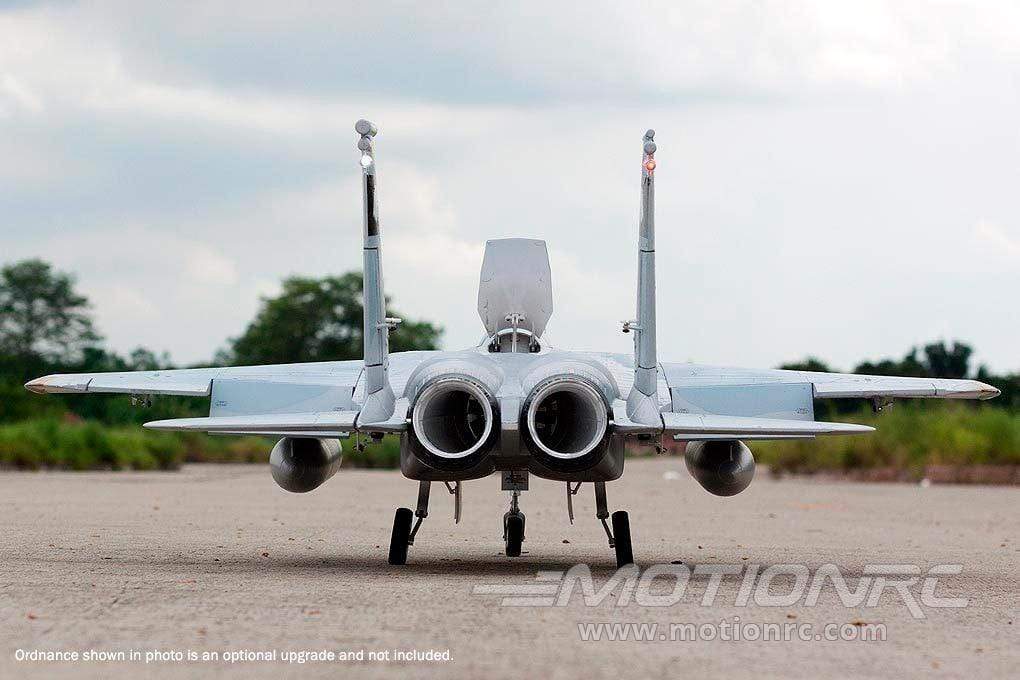

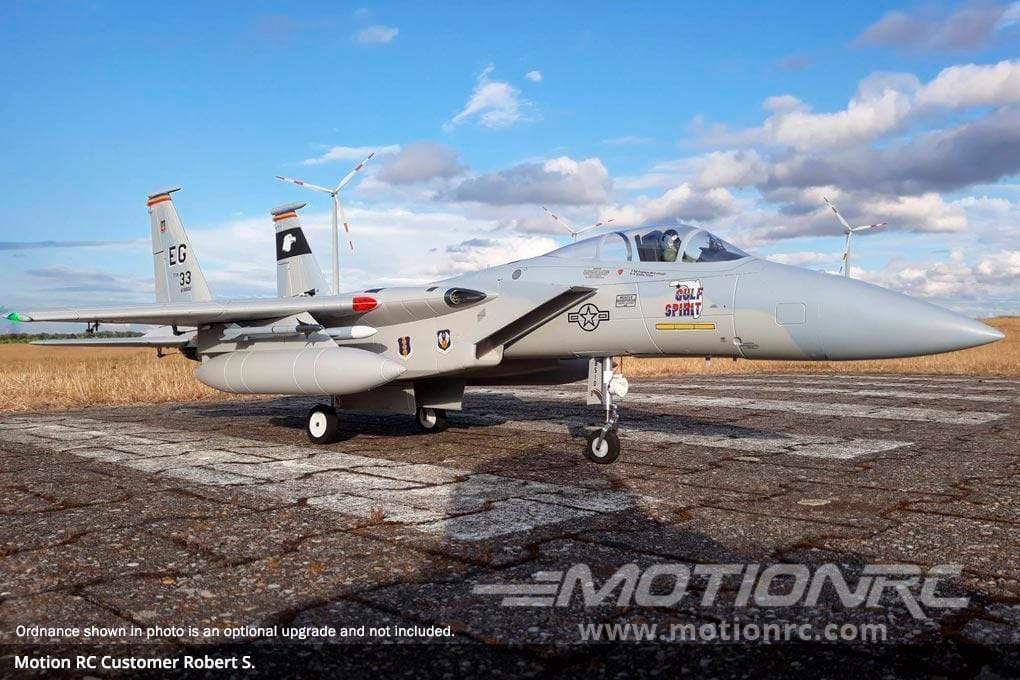

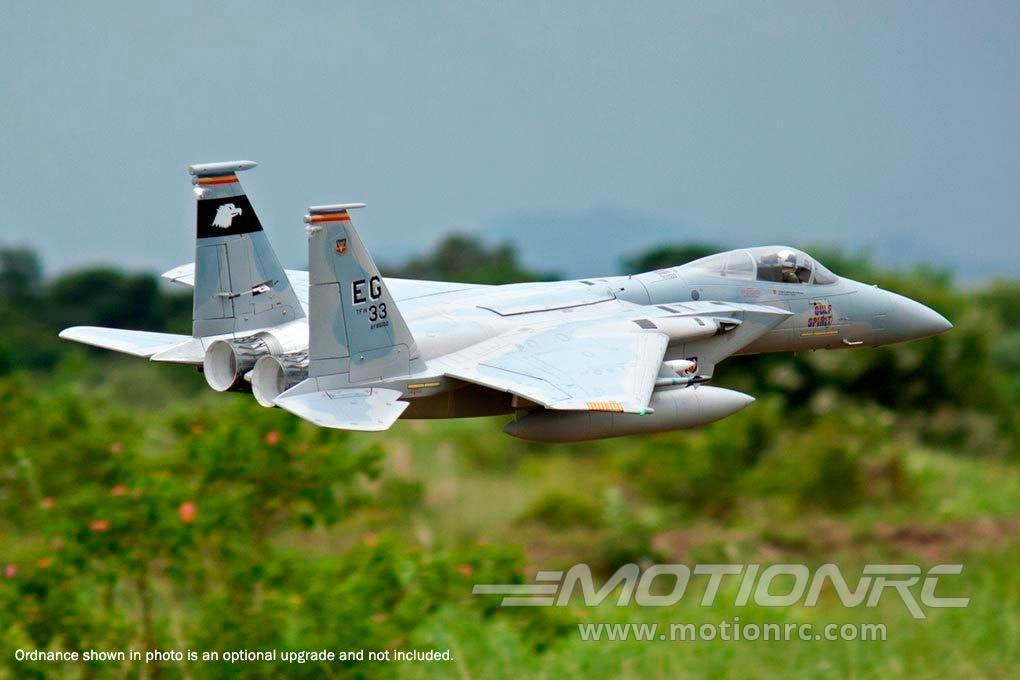

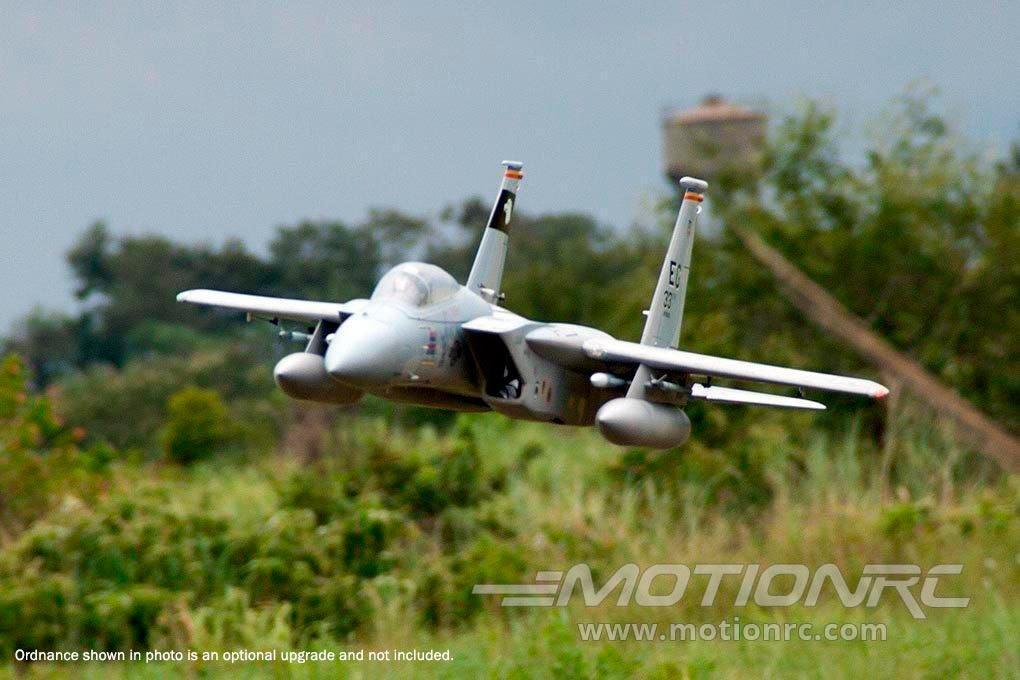

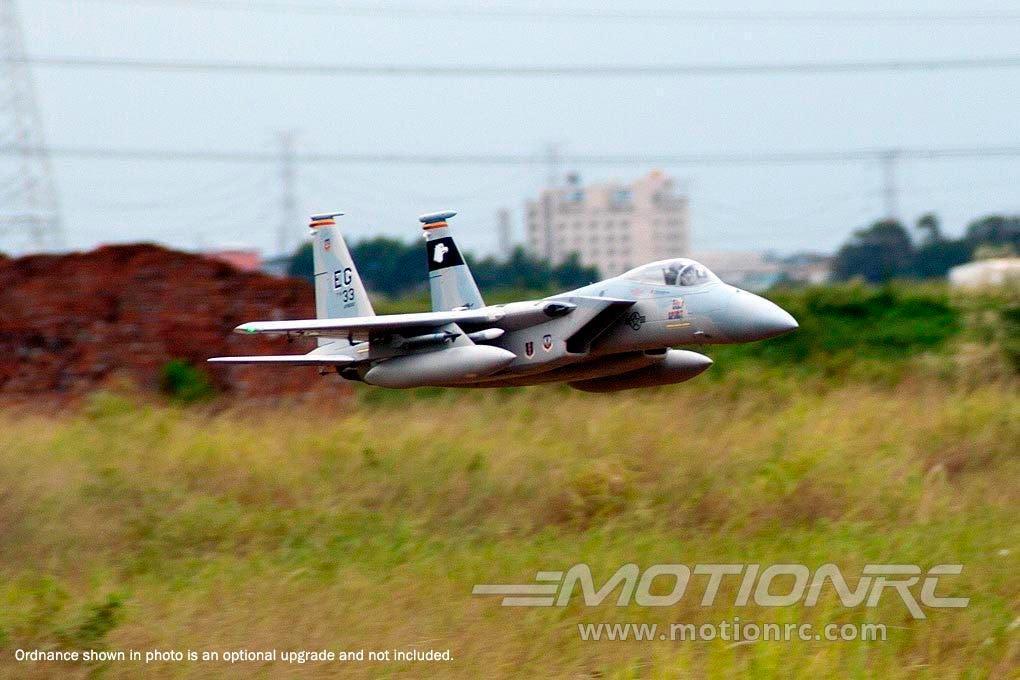

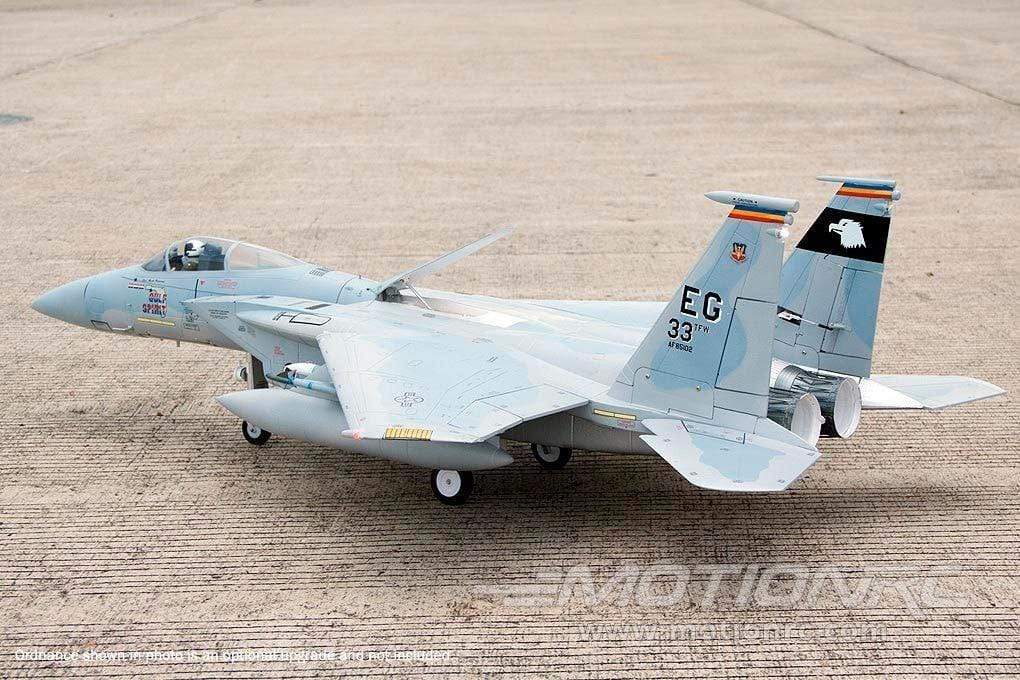

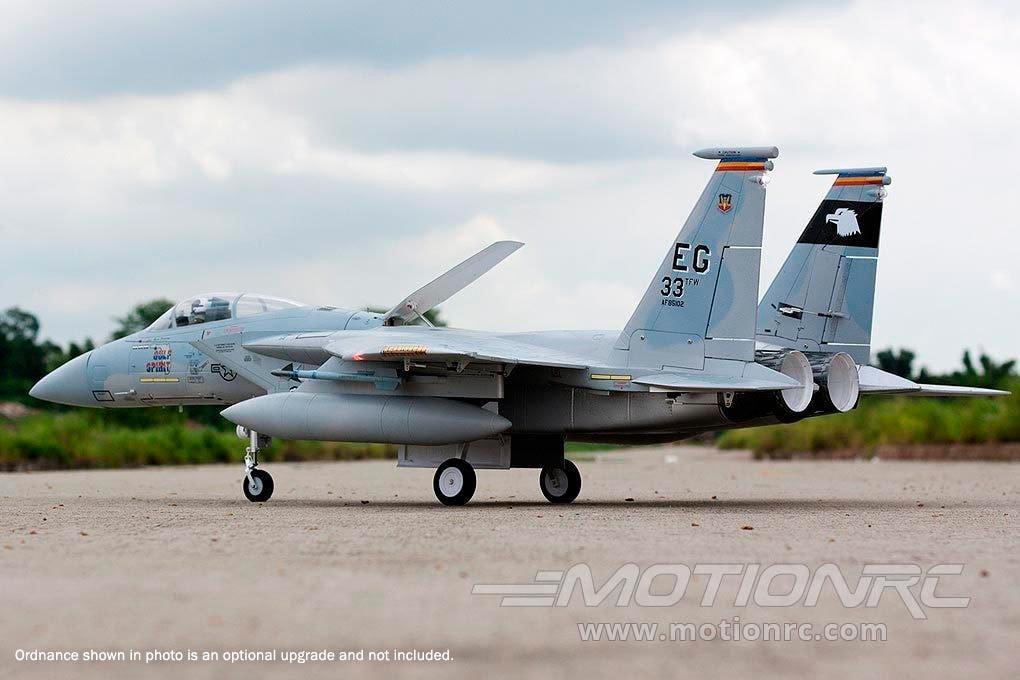

Version Info: This is the 9-Blade High Performance version of the Freewing F-15C. This version includes a powerful 3672-1900Kv inrunner motor with new lightweight 9-blade fan. The pictures show the optional drop tank and weapon set which is not included with the plane. These can be purchased separately by clicking the “upgrades” tab.

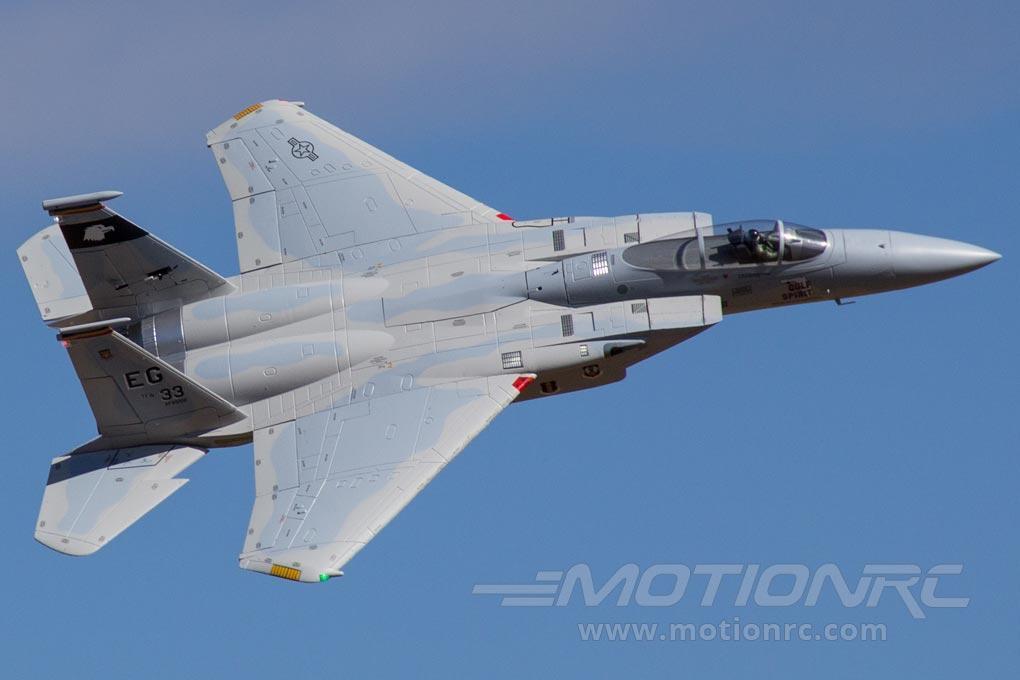

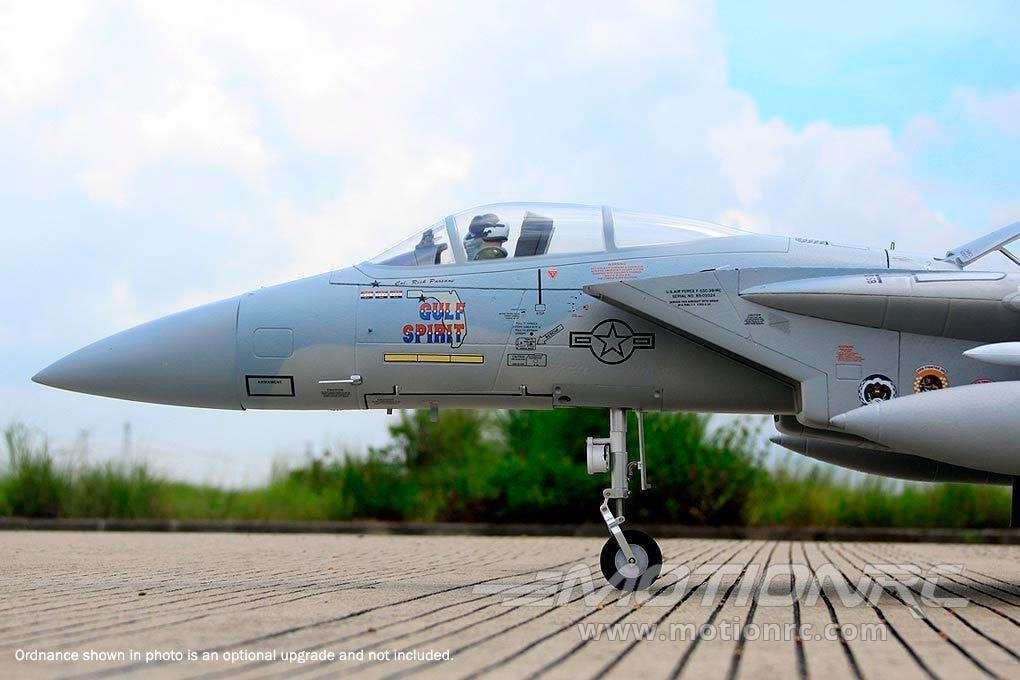

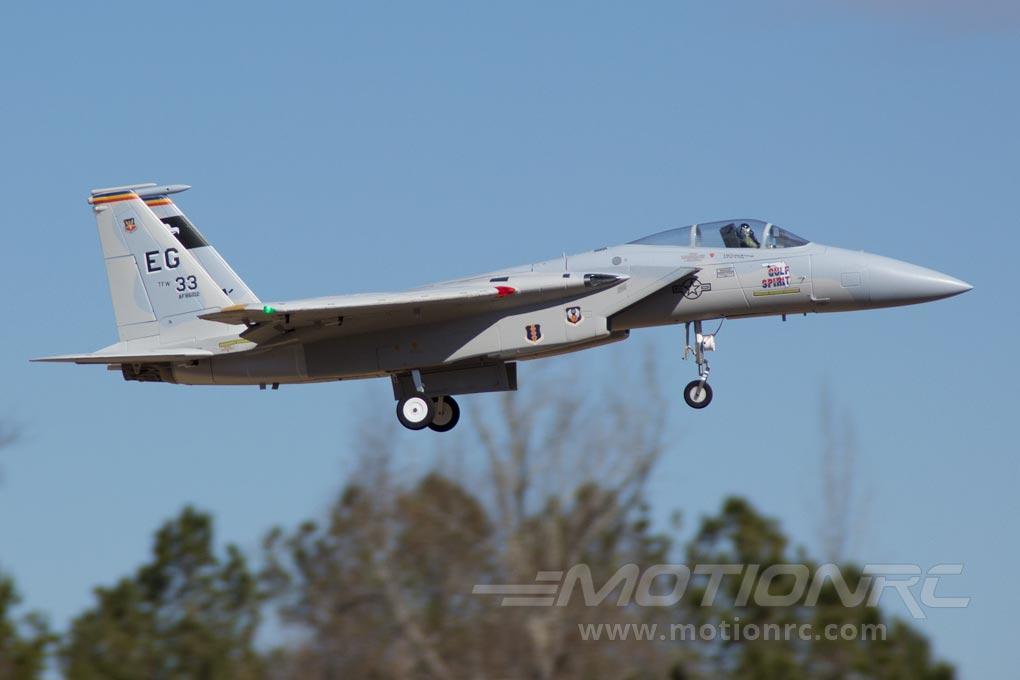

The F-15C Eagle is arguably the world’s most successful fourth generation fighter jet. It delivered the highest thrust, fastest top speed, furthest range, highest combat kill ratio and longest service life among its contemporaries. Our team worked closely with Freewing to develop an RC model which brings the excitement and scale performance of this hallmark aircraft to your local flying field. We chose the livery of AF85102 “Gulf Spirit” of the 58th TFS/33rd TFW, whose pilots combined for three kills during the Gulf War in 1991 and continued on strength with the 12th FS into the 2000s.

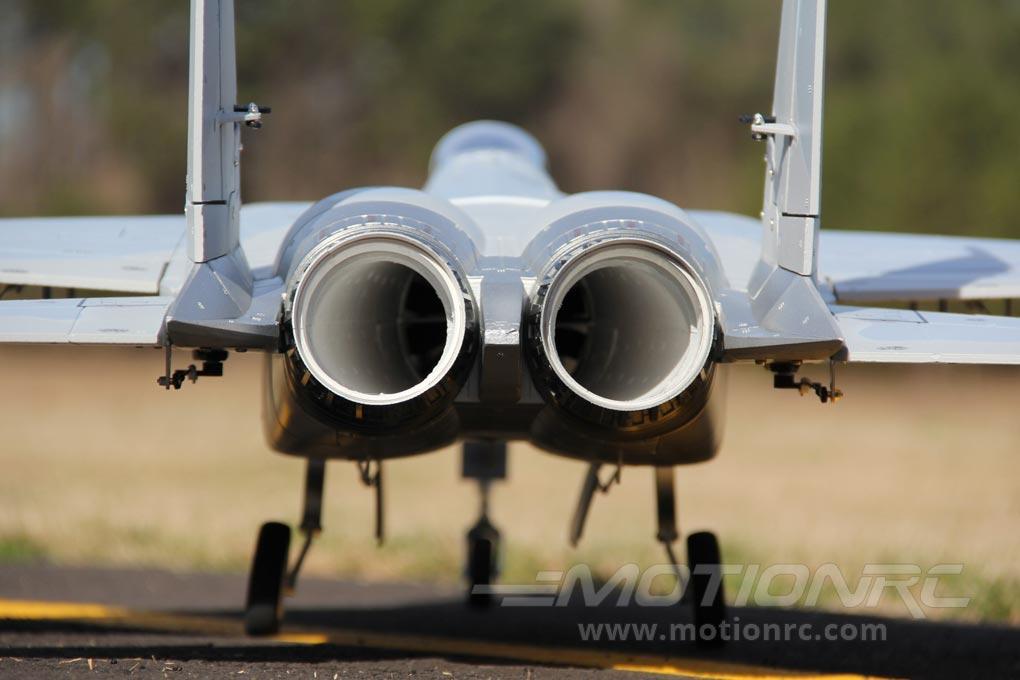

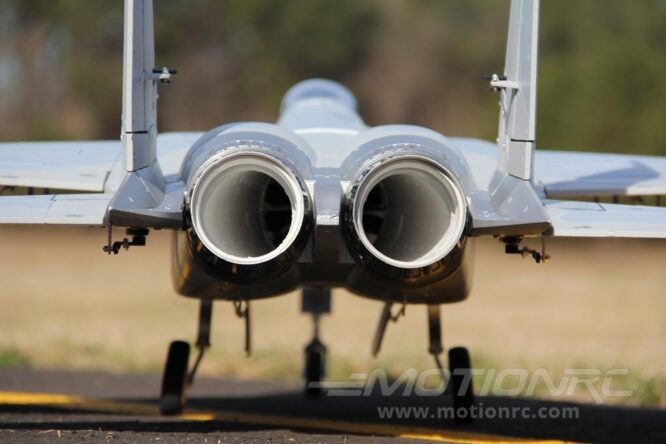

Freewing’s F-15C boasts a powerful single 90mm power system and features a range of scale details which set it apart from any other electric F-15. Accurate aircraft lighting using “Daybright” LEDs, sequenced gear doors and landing light, aluminum landing gear struts with ample compression for operation on short grass or pavement, and metal trunnion retracts for durability. The aircraft also features highly detailed 30 piece plastic exhaust nozzles which rival the 3D detail level of RC turbine jets costing thousands of dollars, and an electric speed brake which works in conjunction with the flaps to stabilize that perfect scale landing approach. The elevator mounting and control hardware is reinforced to provide rigidity in high-G maneuvers. Each F-15C also uses over 100 waterslide decals, meticulously applied at the factory by hand to finish off the iconic look of an F-15C Eagle.

Beyond its outer scale fidelity, we optimized this F-15 for ease of use, making it a great choice for weekend flying. A single 90mm powers the aircraft for better efficiency versus a twin 70mm setup, and the bifurcated outlets are sized at 88% FSA total. The fiberglass nose cone easily detaches with magnets, and the wings can be removed for transport. In fact, the model assembles entirely with only 14 screws, and all surfaces can be removed for transport, repair, or replacement.

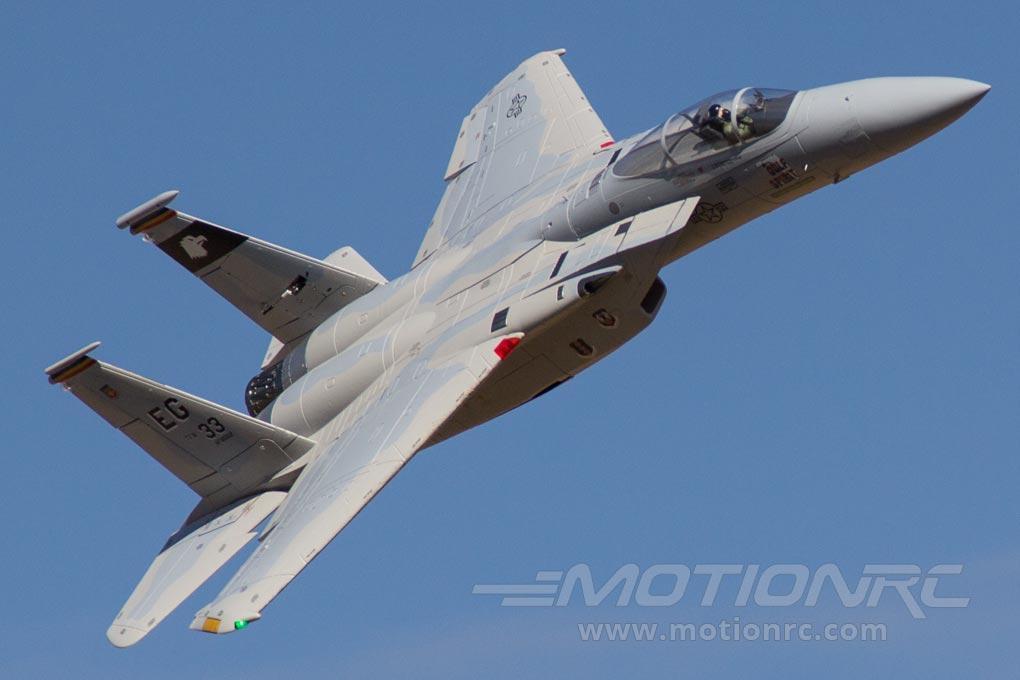

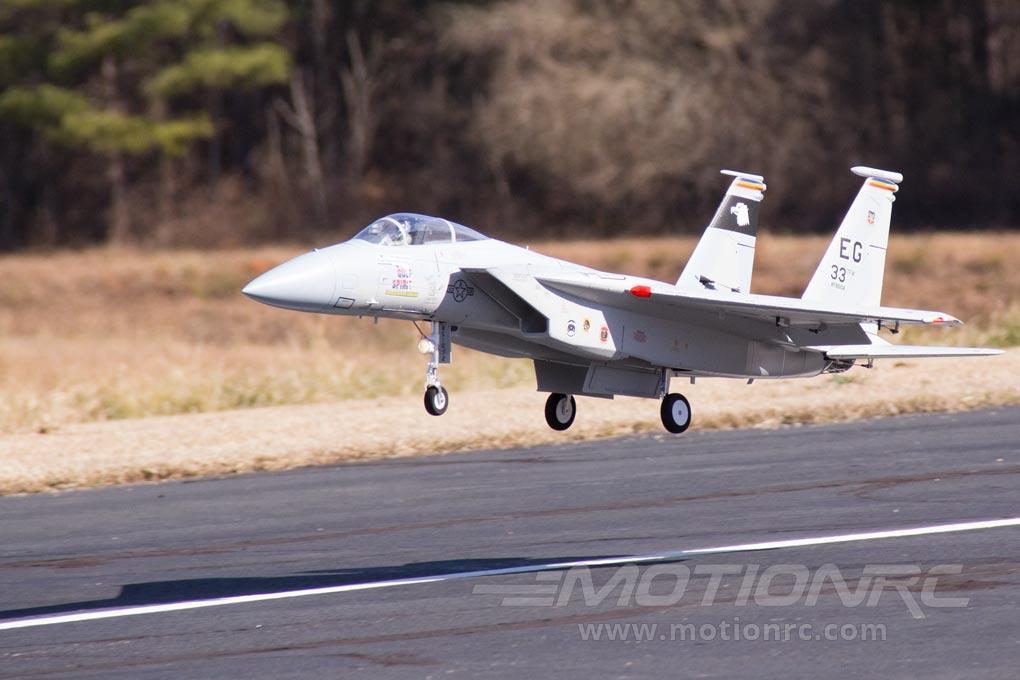

Intended as a “Scale Plus” flyer, the Freewing F-15C excels in scale maneuvers and stability throughout its flight envelope. The aircraft’s wing and elevator use semi-scale airfoils, and at the middle throttle range the aircraft is “floaty.” Compared to other 90mm jets, we would rank the F-15 as one of the more easy to fly. With speed brakes and flaps deployed, we clocked the F-15’s landing speed at 23mph, and we clocked an average top speed of 100mph in level flight. With mixed throttle, an Admiral 6s 5000 mAh 50c battery gives 3-4 minutes of flight.

As of September 2021, new Freewing F-15s include the following improvements:

1) Additional carbon reinforcement inside the forward fuselage
2) Plastic reinforcement along the exterior of the forward fuselage
3) Modified foam cradle to eliminate cracking stress points during shipping
4) Enlarged the nose retract to a larger size: SKU# ET8403.

 Visit the Official Freewing 90mm F-15C Eagle Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

FEATURES:

  • Large scale electric ducted fan RC jet sporting an accurate USAF livery
  • NEW! Now includes High Performance 3672-1900Kv inrunner motor with new lightweight 9-blade fan
  • Hobbywing 130 Amp Hobbywing ESC with 8A UBEC
  • Electric retracts with scale, shock-absorbing struts and main operation, CNC’d from 6061 aluminum and suitable for pavement or short grass

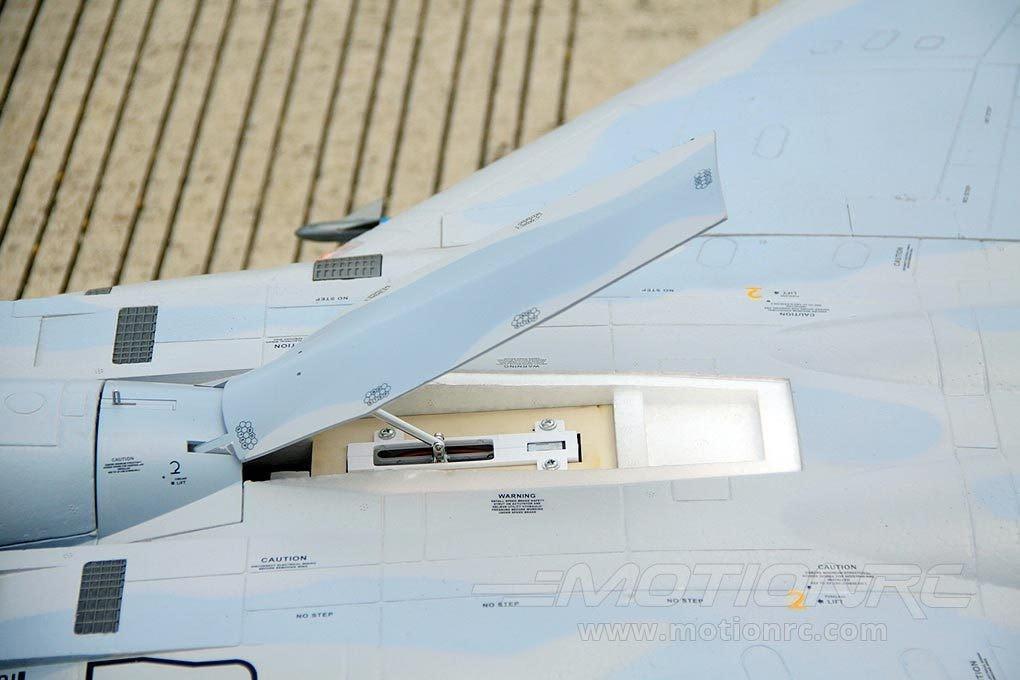

  • Electric wormgear-driven air brake
  • Sequenced gear doors provide added realism and reduced drag
  • Removeable wings and flight surfaces, including a magnetic nose cone, for easy transport and compact storage
  • Machine screws and brass threaded inserts are used to attach the wings for a secure fit and longevity
  • Bright LED navigation lights for enhanced realism and dawn/dusk maneuvers
  • Carbon fiber wing spars and reinforced body parts
  • Upgraded pushrod clevis and metal ball head connectors on elevators provide a robust connection between servo and control surface and eliminate “slop”
  • Nylon, gapless hinges on all control surfaces (superior to foam hinges)

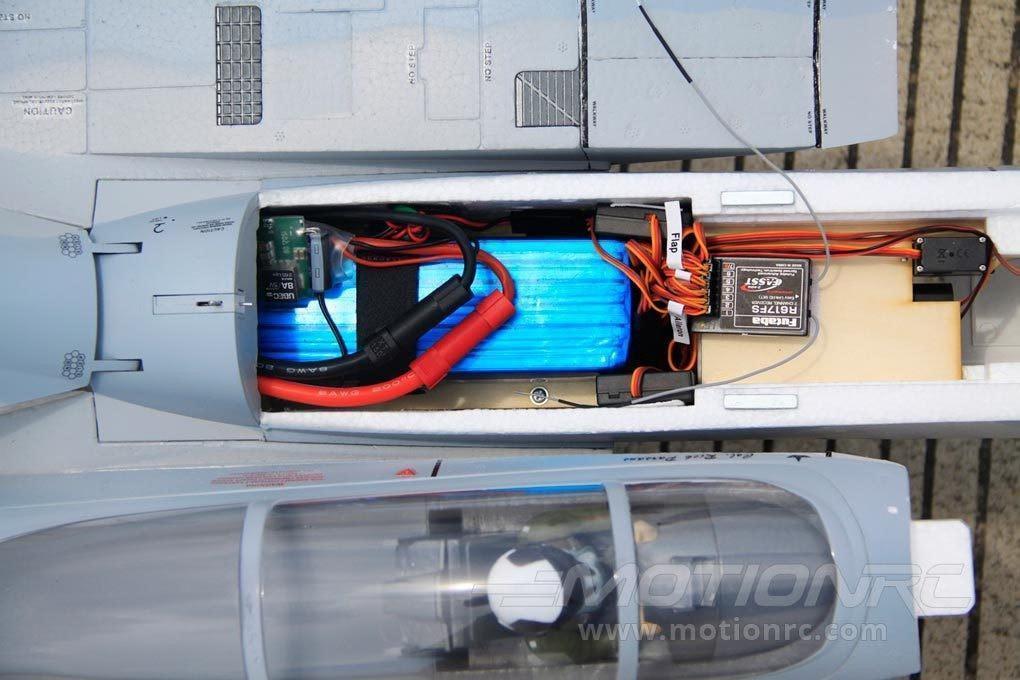

  • All electronics and components are pre-installed for your convenience. Just plug in your receiver, your charged battery, and fly! (PNP only)

INCLUDES:

  • Freewing F-15C Eagle Super Scale High Performance 90mm EDF Jet (9B) – PNP

REQUIRES:

  • 7 Channel radio – select a minimum 7 channel radio from our Radio Collection
  • 7 Channel receiver – select a minimum 7 channel receiver from our Receiver Collection (Six channels if the speed brake is mixed with the flaps, or seven channels if both functions are controlled independently).
  • 6 Cell 22.2V 5000 mAh 50c Lipo Battery with EC5 Connector – EPR50006
  • 6 Cell compatible battery charger – select a minimum 6 cell (6S) charger from our Charger Collection

PRODUCT SPECIFICATIONS:

AGE LEVEL : 18 AND UP
SKILL LEVEL : INTERMEDIATE
BUILD TIME : 2 HOURS
Wingspan 965mm / 37.9in
Length 1450mm / 57.08in
Flying Weight 3080g / 108.64oz
CG (Center of Gravity) 118mm from the leading edge of the wing at the root
Power System 3672-1900Kv Brushless Inrunner Motor
Electronic Speed Control 130A ESC, 8A UBEC, EC5 Connector
Propeller / EDF 90mm EDF with 9 Blade Fan
Servos 9g hybrid gear standard with 400mm lead: Nose gear door
9g hybrid gear standard with 200mm lead: Nose steering
9g hybrid gear standard with 100mm lead: Rear cabin left
9g hybrid gear reverse with 100mm lead: Rear cabin right
17g metal gear standard with 300mm lead: Left aileron, right aileron
17g metal gear standard with 200mm lead: Left flap
17g metal gear reverse with 200mm lead: Right flap
23g metal gear standard with 100mm lead: Left elevator
23g metal gear reverse with 100mm lead: Right elevator
17g metal gear standard with 100mm lead: Rudder
Landing Gear CNC electric retracts with scale, shock-absorbing struts and main operation
Main Wheels = 60mm tall, Nose Wheel = 45mm tall
Required Battery 6S 22.2V 5000mAh 50C LiPo (not included)
Required Radio Minimum 7 Channel (required)
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps Yes
Lights Yes
Hinge Type Nylon hinges
Material EPO Foam
Skill Level Intermediate
Build Time 2 Hours
Recommended Environment Outdoor
Gewicht 6,9 kg
Größe 135 × 40 × 29 cm
Zellen max. [LiPo]

6

Modelltyp

Jet, Kunstflug, Vorbildähnlich

Bausatzausführung

PNP

Gewicht [g]

3600

Länge [mm]

1450

Antrieb

Elektro

Spannweite [mm]

965
